High-Brightness 20,000 Lumen Laser Projector for Professional 3D Projection Mapping

MOQ : 1

Brand Name : SMX

Model Number : MX-X20000U

Certification : ISO,CE

Place of Origin : China

Payment Terms : T/T,Western Union

Supply Ability : 20000pcs/monthly

Delivery Time : 7-20days

Packaging Details : Carton

Birghtness : 20000 lumen

Display Technology : Liquid Crystal Display

Native Resolution : WUXGA (1920 x 1200)

Inputs : HDMI, VGA, USB, Ethernet

Light Source Lifespan : 20000-30000 hours

Len Shift : V：±65%， H: ±25%

Display Panel : 3x1.0” with MLA

Screen Size : 50-500 inch

Connectivity : HDMI, VGA, USB, Ethernet

Lan Control : Yes

Applictaion : 3D Mapping

Contact Now

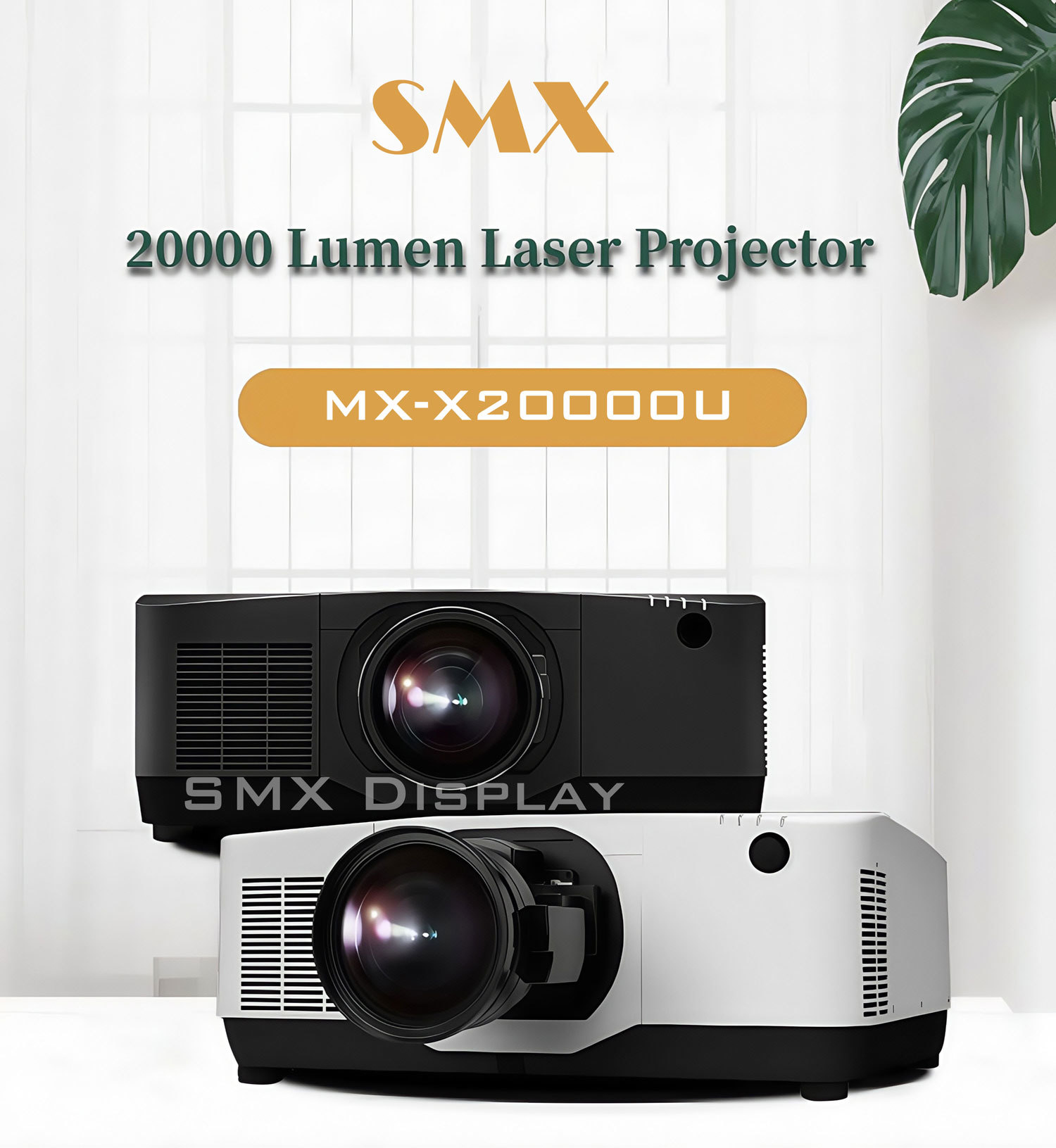

High-Brightness 20,000 Lumen Laser Projector for Professional 3D Projection Mapping

SMX MX-X20000U 20000 lumen projectors are commonly used in higher education auditoriums, outdoor 3d mapping, and large-scale visitor attractions such as art galleries and museums.

Featuring a laser light source for up to 20,000 hours of use with no noticeable decline in image brightness over time.

A fleet of optional lenses is available for the models, allowing you to achieve your desired image size regardless of the environment.

Specification

Model
	Model#	MX-X20000U
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
Laser Lifetime	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM(More lens pls check the len sheet)
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1(Display)
	RJ45	*1(Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
General Spec
Audio	Speaker	N/A
Temp.&Humidity	Operating Temp.	0 to 50°C
	Operating Thumidity.	20%-80%
	Store Temp.	-10 to 50°C
	Store Humidity.	20%-80%
Other Functions
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Dimension&Weight( not including len)
	Product Size (WxHxD mm)	599X240.2X493.8
	Net. Weight (KG)	28.9Kg
	Packaging (WxHxD mm)	745*370630
	Gross. Weight (KG)	34Kg
	Package	Carton
Accessory
	Manual Languages	Chinese, English
	Standard Accessaries	Power cord (3m, Black), Remote control

High-Brightness 20,000 Lumen Laser Projector for Professional 3D Projection Mapping
